Most commercial openings end up with one of two doors: a rolling steel door, whose slatted curtain coils into a drum above the opening, or a sectional overhead door, whose hinged panels ride tracks up and lie flat under the ceiling. Both can be insulated, motorized and built for large openings. The right choice usually comes down to four things: the space around the opening, how much insulation you need, how much abuse and security risk the door faces, and how often it cycles.

Key takeaways
Rolling doors coil into a compact hood above the opening and need very little room behind it — useful when the ceiling is busy with lights, sprinklers, cranes or racking.
Sectional doors are the stronger thermal choice. Our AM850 reaches R-26.
Rolling steel is widely seen as the heavy-duty, high-security option (Metal Construction News) and scales to very large openings — our Titan 800 goes up to 70′ wide by 90′ high.
Measure headroom and the space behind the opening first. Those two numbers rule out options faster than anything else.

How each door works

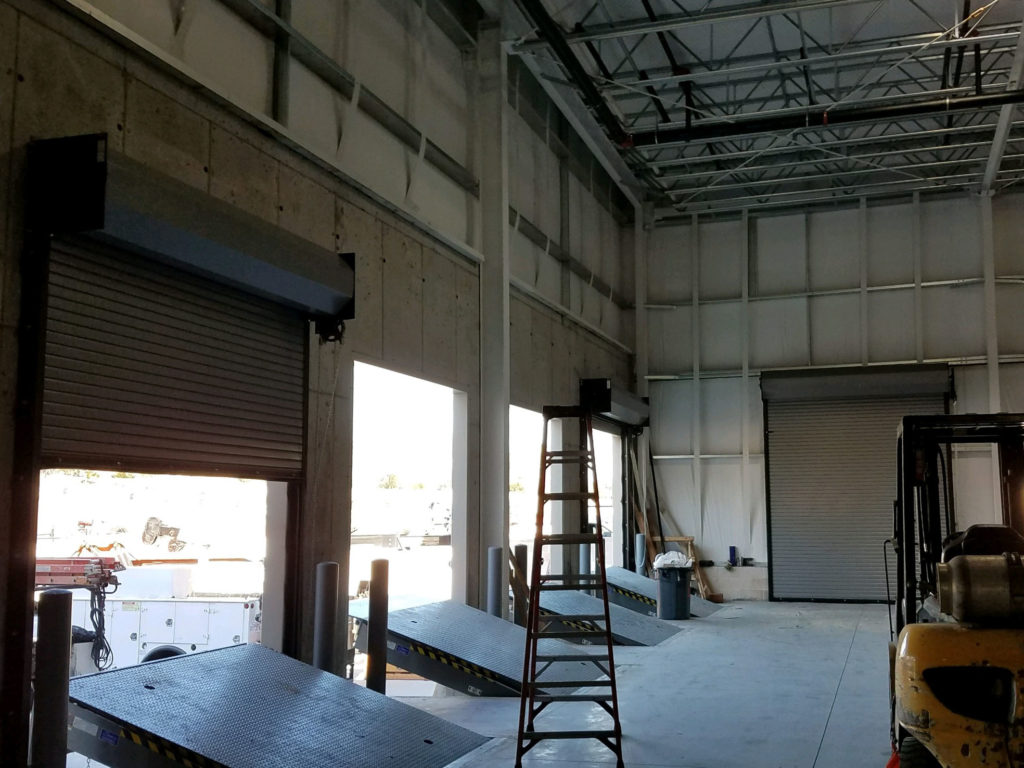

Rolling steel doors are made of interlocking steel slats. When the door opens, the curtain wraps around a spring-loaded barrel housed in a hood above the opening, and the edges run in guides mounted to the jambs. Because everything stays at the wall, rolling doors “require some headroom above the opening to accommodate a fully retracted coil, but little backroom” (Construction Specifier).

Sectional overhead doors are a stack of horizontal panels hinged together. Rollers on each panel travel in tracks that curve back under the ceiling, so an open door lies flat inside the building. That means the space above and behind the opening has to stay clear, and lighting, HVAC and sprinklers need to be planned around the track (Construction Specifier). Track layouts — standard lift, high lift, vertical lift, roof pitch and low headroom — let a sectional door fit a range of ceilings (AM426).

Side-by-side comparison

	Rolling steel door	Sectional overhead door
Space needed	Hood and coil above the opening; very little room behind the wall	Headroom for the track; open door lies under the ceiling inside
Insulation	Insulated slats available — AM625 is R-7.7	AM426 R-7.35; AM200 and AM599 R-17.5; AM850 R-26
Construction	Steel curtains from 24 gauge (600 Series, AM625) to 14 gauge (Titan 800), alternating end locks, optional windlocks	Steel panels; 16-gauge on our Heavy Duty model; impact-resistant bottom section option
Largest sizes	Titan 800 up to 70′ W x 90′ H; 600 Series oversize doors up to 1,500 sq ft	Up to 40’2″ W x 32’1″ H (AM200, AM599, Heavy Duty)
Daylight and visibility	Vision slats, perforated or fenestrated slats	Window sections and full-view aluminum and glass doors
Operation	Chain hoist, crank or motor	Push-up, chain hoist or motor

Standard spring ratings differ by model, so check the specific door. Our sectional models list 10,000-cycle springs as standard, with 25,000, 50,000 and 100,000-cycle options. Our standard roll-up doors list 20,000-cycle springs, with a high-use setup available.

When a rolling steel door is the better fit

The ceiling is spoken for. Overhead cranes, sprinkler mains, high racking or unit heaters near the opening leave no room for sectional tracks. A rolling door keeps everything at the wall.
Security and abuse are the main concerns. Steel curtains with alternating end locks resist forced entry and impact, and windlocks keep the curtain in its guides. For the highest-risk storefronts, a riot-proof roll-up door uses curtains up to 14 gauge.
The opening is very large. The Titan 800 covers openings up to 70′ wide and 90′ high.
You need a fire separation. Fire-rated rolling doors are available up to a 4-hour Class A UL rating, depending on size and configuration.

When a sectional overhead door is the better fit

Climate control matters. Our insulated sectional doors reach much higher R-values than our insulated rolling door. The AM850’s 3-inch foamed-in-place panels reach R-26, and the AM599 adds STC Class 26 sound performance. If you are weighing models, our guide to choosing an insulated overhead door compares them in detail.
You want daylight or a showroom look. Full-view aluminum and glass doors suit car dealerships, auto garages, fire stations and modern workspaces.
The door is light and opened by hand. Lighter sectional doors can be pushed up by hand, with chain hoists and motors for heavier panels.

Five questions to answer before you choose

How much headroom is there, and what is in it? Measure from the top of the opening to the ceiling or the lowest obstruction. Our guide on how to measure a commercial door opening walks through it.
Is the space heated or cooled? If yes, insulation and perimeter seals pay back every time the door opens and closes.
How many times a day will the door cycle? High-traffic openings need higher-cycle springs and, often, a motor.
Is the opening exposed to high winds? Larger or exposed openings may need a higher wind-load rating. Our 600 Series, Titan 800 and AM625 rolling doors are rated at 20 psf standard; the Titan 800 and AM625 offer a 55 psf option.
Do people need to walk through without opening the whole door? Both types can include a pass door (also called a wicket door).

Common questions

Which is more secure, a rolling door or a sectional door?

Rolling steel doors are generally regarded as the more security-focused option — Overhead Door Corp. calls rolling service doors “a heavy-duty solution offering maximum security and strength” (Metal Construction News). Their interlocking steel curtain runs in guides on both sides, and options such as windlocks, heavier gauges and riot-proof construction make them harder to force.

Which is more energy efficient?

Insulated sectional doors. Among our models, the AM850 reaches R-26, compared with R-7.7 for our insulated rolling door, the AM625.

Can either door be motorized?

Yes. Both can be fitted with a motor and safety devices such as photo eyes, safety edges, traffic lights and card readers.

The bottom line

Choose a rolling steel door when space above and behind the opening is tight, security and durability come first, or the opening is very large. Choose a sectional overhead door when insulation, daylight or appearance matter most and there is room for the track. If the answer isn’t obvious, send us your opening’s measurements and a few photos and we’ll recommend options.
