Site Readiness for Door Installation

Door Type

Garage Door

Sectional Door

Rolling Door/Grille

Installation Address

Project Name (if applicable)

Please read the following instructions carefully:

By signing our quote and shop drawing you agree to the opening size dimensions, adequate head room, side room, and back room, as indicated by the illustrations below, as well as electrical power supply (voltage & phase) and electrical location.
You also agree to the overall speciﬁcations of the product design, application, and prevention of any other trade or product interference. If, upon mobilization of American Door, these parameters are not met, you will be subject to a remobilization fee of $1,000.00.

If you have any questions please contact your American Door Sales Representative.

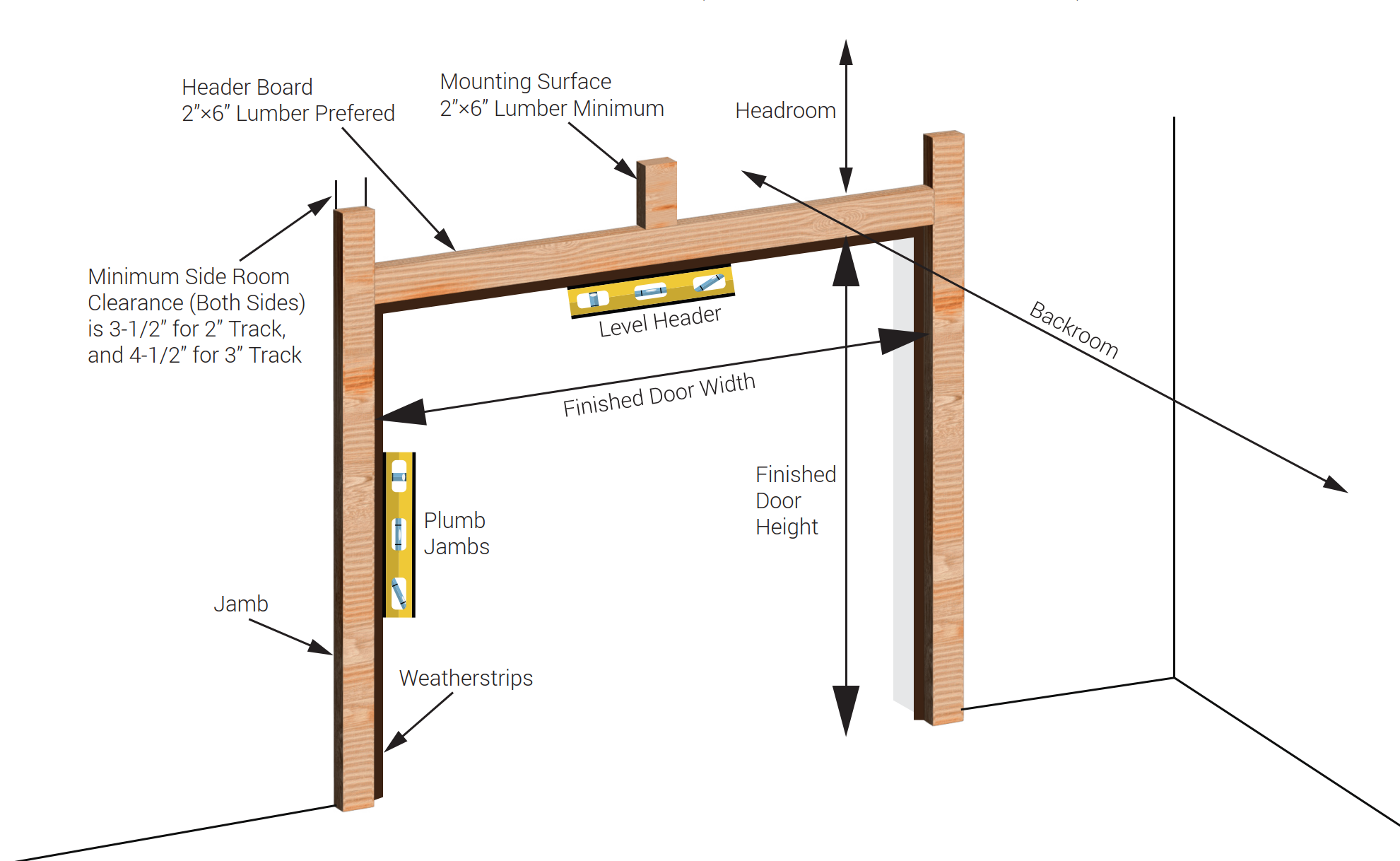

2”×6” Garage Door Frame Details
The frame is not installed by American Door (to be ready before installation)

Please confirm that the following is ready to accept the door:

Framing

Framing is in place

Mounting surface is prepared to accept tracks, springs, back hangs, and motors (if applicable).

Clearance

Adequate headroom clearance checked

Adequate side clearance checked

Overhead Obstructions

There are no overhead obstructions

Power Source

Power source exist

Power brought to motor's location

Surrounding

Entire opening area is clear of obstructions

Full Name

Signature
